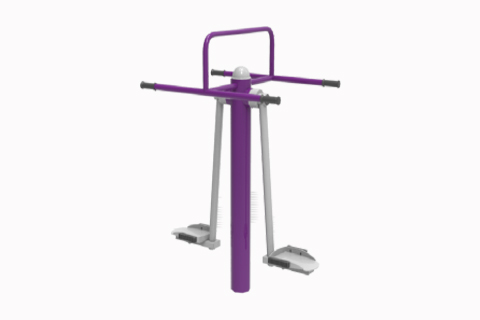

Dimensions：1020×764×1496 mm

Column: standard pipe （φ114×3.0）mm

Pendulum: swing within the set limit; unilateral amplitude less than 55 degree;  standard pipe（φ60×3.0）mm;

 length of the rigid pendulum is 957mm; 111mm distance between pendulum and column

Pedal: both sides of the pedals equipped with flexible protective pad to prevent piinching caused by swing pendulum.

handlebar: with new style grip complying with new national standard

Shaft: diameter φ35mm, standard T10 steel, surface hardness（35～40）HRC, using 6007 deep groove ball bearings

Installation : directly-buried way

Embedded depth for the column: 500mm

Foundation size for single column:（500×500×600）mm
