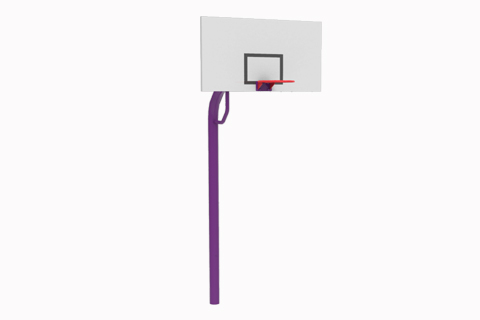

Dimesions：2687×1800×3967mm

Column and cantilever:  standard pipe（φ165×4）mm

Connecting rod: standard pipe （φ48×3）mm;  5 support points between the board and frame

Board: adopting unsaturated polyester plastic (t=8mm); with embedded nuts ; width of the board is 50mm;  the inner board supported by  ＃ type stiffener which top thickness not less than 3mm and bottom thickness not less than 5mm

Length from main column to board: 1850mm

Height from basket to ground:3050mm

Installation : directly-buried way

Embedded depth for the column: 900mm

Foundation size:（1000×1000×1000）mm
