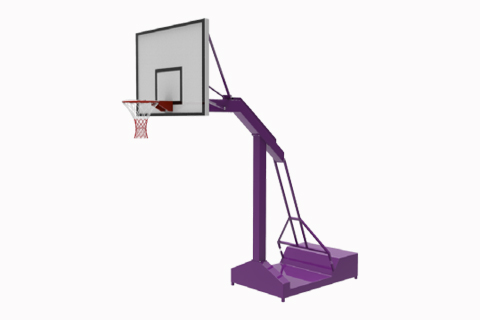

Dimensions：4968x1800x3948mm

Column:  square tube 150x150x4.0mm

Iron box:  dimensions of 2210x1100x557mm; with thickness of 2mm;  575kg weight

Connecting rod: square tube 40x80x2.2mm ;  5 support points between the board and frame

Board: adopting unsaturated polyester plastic (t=8mm); with embedded nuts ; width of the board is 50mm;  the inner board supported by  ＃ type stiffener which top thickness not less than 3mm and bottom thickness not less than 5mm

Length from main column to board: 2130mm

Height from basket to ground:3050mm
